Hacking Homebrew

- Blog: https://marcyoung.us
 - Github:  https://www.github.com/myoung34
 - This slideshow: https://marcyoung.us/pytn-2020/#1
]

---

# Introduction

## Senior Cloud Security Engineer at Zapier
## Maker of unnecessary things

---

![](images/rocket.png)

---

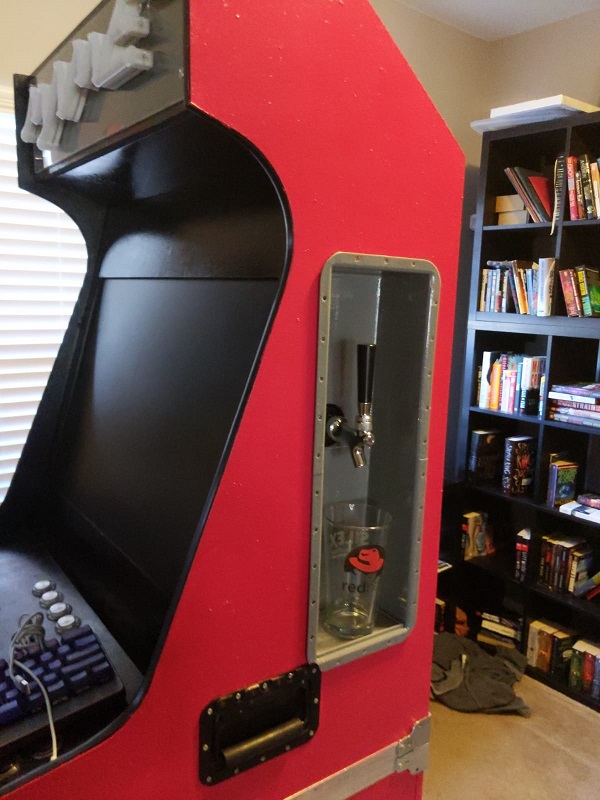

![](images/barcade.jpg)

---

![](https://marcyoung.us/images/hulksmash.gif)

---

.right-column[
  The Internet of things (IoT) is a system of interrelated computing devices, mechanical and digital machines are provided with unique identifiers (UIDs) and the ability to transfer data over a network without requiring human-to-human or human-to-computer interaction.

]

---

---

layout: false
.left-column[
  ## What is IoT
  ### It's Crap
  ### It's Other Crap
]

---

layout: false
.left-column[
  ## What is IoT
  ### It's Crap
  ### It's Other Crap
  ### Sometimes it's useful
]

---

layout: false
.left-column[
  ## What is IoT
  ### It's Crap
  ### It's Other Crap
  ### Sometimes it's useful
  ### It's Crap
]

---

layout: false
.left-column[
  ## What is IoT
  ### It's Crap
  ### It's Other Crap
  ### Sometimes it's useful
  ### It's Crap
  ### Security
]

---

---

layout: false
.left-column[
  ## ELI5 Hacking
  ### What People Think I Do
  ### What I Actually Do
]

---

---

---

---

layout: false
.left-column[
  ## Beer: a primer
  ### Grass
  ### Hops
  ### Water + Yeast
]

---

layout: false
.left-column[
  ## Beer: a primer
  ### Grass
  ### Hops
  ### Water + Yeast
  ### Mash It
]

---

layout: false
.left-column[
  ## Beer: a primer
  ### Grass
  ### Hops
  ### Water + Yeast
  ### Mash It
  ### Boil it
]

---

layout: false
.left-column[
  ## Beer: a primer
  ### Grass
  ### Hops
  ### Water + Yeast
  ### Mash It
  ### Boil it
  ### Ferment It
]

---

layout: false
.left-column[
  ## Beer: a primer
  ### Grass
  ### Hops
  ### Water + Yeast
  ### Mash It
  ### Boil it
  ### Ferment It
  ### Carbonate It
]

---

layout: false
.left-column[
  ## Lets Begin: The Bluetooth Hydrometer
  ### What is gravity
]

---

layout: false
.left-column[
  ## Lets Begin: The Bluetooth Hydrometer
  ### What is gravity

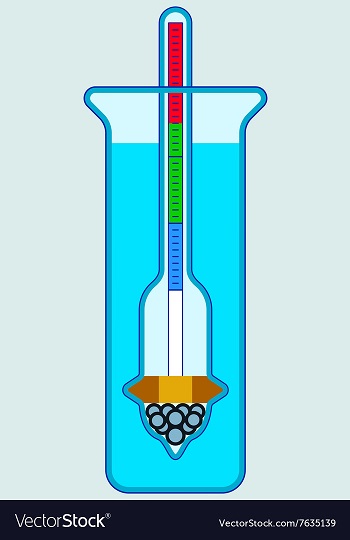

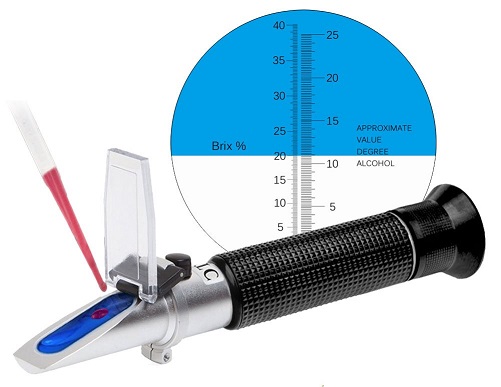

  ### Invasive measurement
]

---

layout: false
.left-column[
  ## Lets Begin: The Bluetooth Hydrometer
  ### What is gravity
  ### Invasive measurement
  ### Nonnvasive measurement
]

---

layout: false
.left-column[

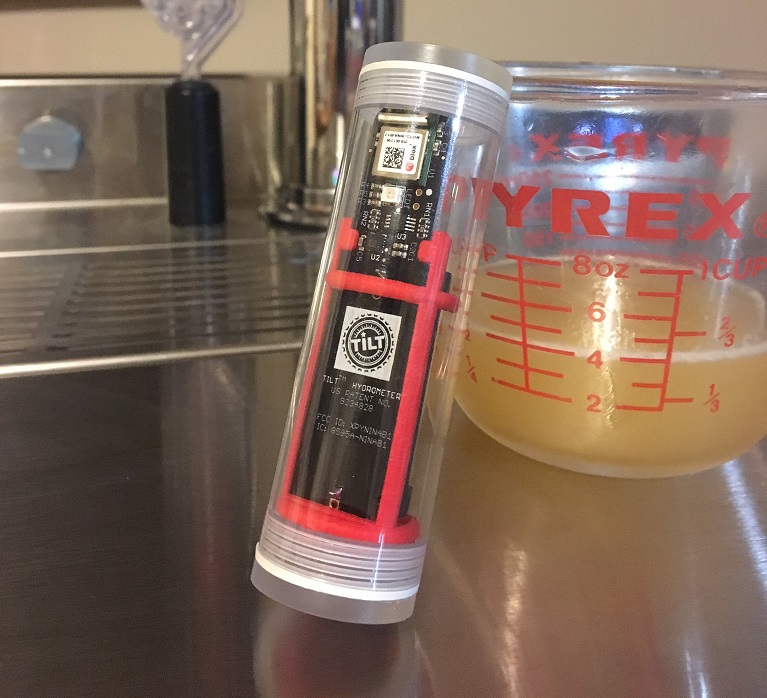

  ## Lets Begin: The Bluetooth Hydrometer
  ### What is gravity
  ### Invasive measurement
  ### Nonnvasive measurement
  ### Smart measurement
]

---

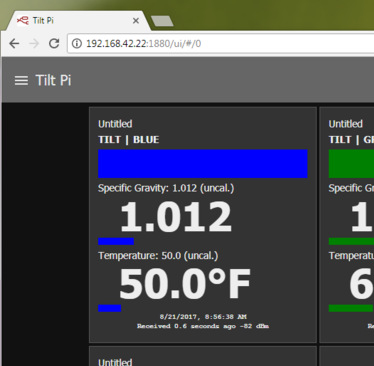

![](images/tiltpi.png)

- The "[official dashboard](https://github.com/baronbrew/TILTpi)" is gross

- I dont like using different "apps" for different things

- Everyone has a biased flavor of this.

- "We" can do better.

]

---

```remark
> 04 3E 27 02 01 00 00 5A 09 9B 16 A3 04 1B 1A FF 4C 00 02 15
  A4 95 BB 10 C5 B1 4B 44 B5 12 13 70 F0 2D 74 DE 00 44 03 F8
  C5 C7

```

```remark

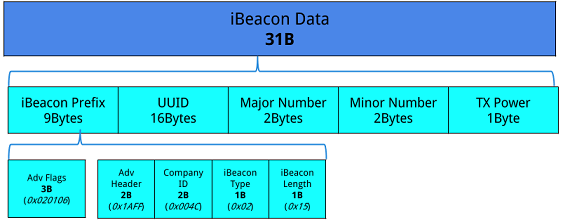

04: HCI Packet Type HCI Event
3E: LE Meta event
27: Parameter total length (39 octets)
02: LE Advertising report sub-event
01: Number of reports (1)
00: Event type connectable and scannable undirected advertising
00: Public address type
5A 09 9B 16 A3 04: address
1B: length of data field (27 octets)
1A: length of first advertising data (AD) structure (26)
FF: type of first AD structure - manufacturer specific data
4C 00: manufacturer ID - Apple iBeacon
02: type (constant, defined by iBeacon spec)
15: length (constant, defined by iBeacon spec)
A4 95 BB 10 C5 B1 4B 44 B5 12 13 70 F0 2D 74 DE: device UUID
00 44: major - temperature (in degrees fahrenheit)
03 F8: minor - specific gravity (x1000)
C5: TX power in dBm
C7: RSSI in dBm
  ```

---

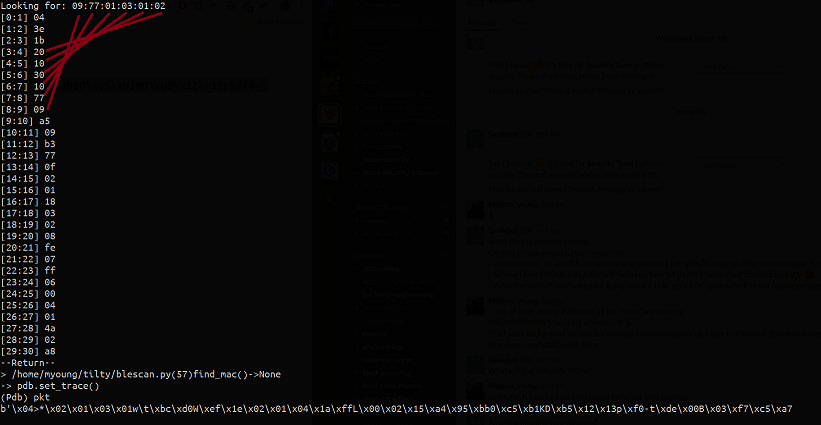

Let's steal a live packet

What do we know? We know the mac address. If We can find a packet with that, we can do whatever we want in a vacuum.

https://raw.githubusercontent.com/myoung34/tilty/pytn/1/blescan.py
]

---

![](images/pkt1.png)

---

layout: false
.left-column[
  ## iBeacons
  ### Helpful Info
  ### First pass
  ### We have a packet
]

```
    pkt = b'\x04>*\x02\x01\x03\x01w\t\xbc\xd0W\xef\x1e\x02\x01\x04
            \x1a\xffL\x00\x02\x15\xa4\x95\xbb0\xc5\xb1KD\xb5\x12
            \x12p\xf0-t\xde\x00B\x03\xf7\xc5\xa7'
  ```

Let's use TDD so we can iterate fast and start parsing.

https://raw.githubusercontent.com/myoung34/tilty/pytn/2/blescan.py
  https://raw.githubusercontent.com/myoung34/tilty/pytn/2/test_ble.py
]

---

layout: false
.left-column[
  ## iBeacons
  ### Helpful Info
  ### First pass
  ### We have a packet
  ### We have a known list of UUID
]

https://github.com/atlefren/pytilt/blob/master/pytilt.py

TILT_DEVICES = {

'a495bb30c5b14b44b5121370f02d74de': 'Black',

'a495bb60c5b14b44b5121370f02d74de': 'Blue',

'a495bb20c5b14b44b5121370f02d74de': 'Green',

      ...snip...

}

Lets pull only from that whitelist.

https://raw.githubusercontent.com/myoung34/tilty/pytn/3/blescan.py
  https://raw.githubusercontent.com/myoung34/tilty/pytn/3/test_ble.py
]

---

layout: false
.left-column[
  ## iBeacons
  ### Helpful Info
  ### First pass
  ### We have a packet
  ### We have a known list of UUID
  ### All the data
]

https://raw.githubusercontent.com/myoung34/tilty/pytn/4/blescan.py
  https://raw.githubusercontent.com/myoung34/tilty/pytn/4/test_ble.py
]

---

layout: false
.left-column[
  ## iBeacons
  ### Helpful Info
  ### First pass
  ### We have a packet
  ### We have a known list of UUID
  ### All the data
  ### Whats next
]

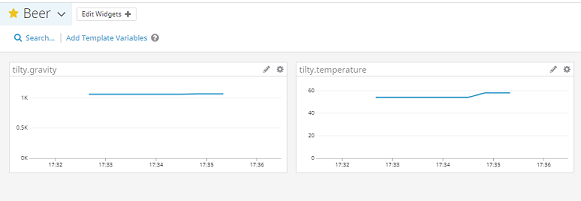

![](images/datadog.png)

https://github.com/myoung34/tilty

https://pypi.org/project/Tilty/

https://hub.docker.com/r/myoung34/tilty

]

---

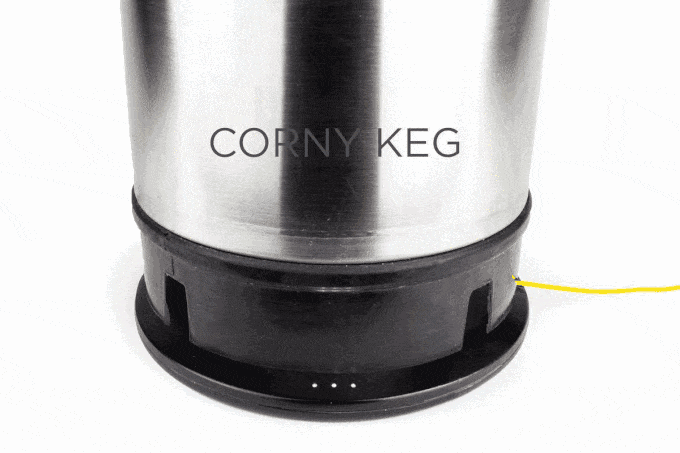

![](images/plaato1.gif)

]

---

layout: false
.left-column[
  ## The Plaato Keg
  ### Scale
  ### Leak Detector
]

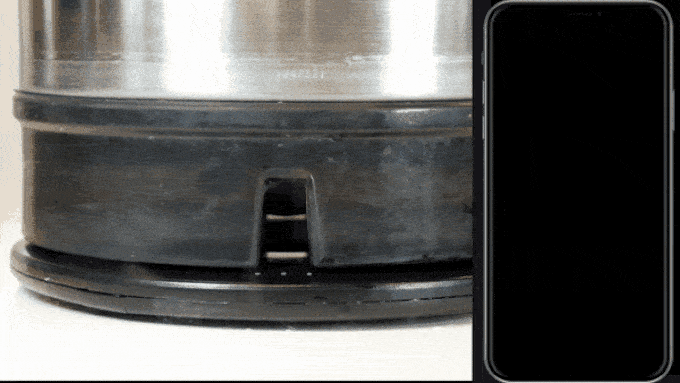

![](images/plaato2.gif)

]

---

layout: false
.left-column[
  ## The Plaato Keg
  ### Scale
  ### Leak Detector
  ### "Neat App"
]

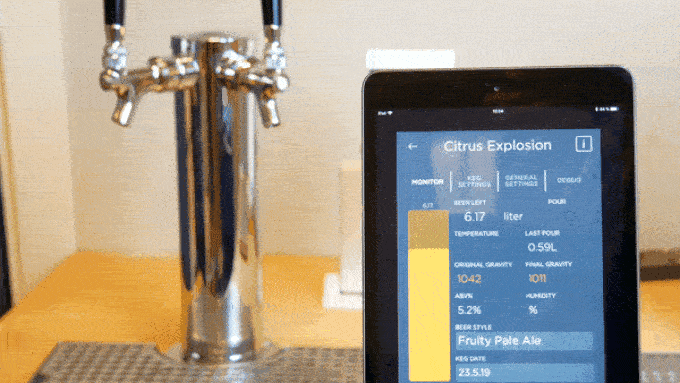

![](images/plaato3.gif)

]

---

I want control.

]

---

I want control.

- The App Sucks
]

---

I want control.

- The App Sucks

- Beta features not complete yet
]

---

- The App Sucks

- Beta features not complete yet

- Ain't no one paying for your "cloud"

]

---

---

]

---

---

---

---

layout: false
.left-column[
  ## Lets Intercept
  ### The Pineapple
  ### PCAP Inspection
]

---

layout: false
.left-column[
  ## Lets Intercept
  ### The Pineapple
  ### PCAP Inspection
  ### DNS Spoof
]

---

layout: false
.left-column[
  ## Lets Intercept
  ### The Pineapple
  ### PCAP Inspection
  ### DNS Spoof
  ### Recon
]

- What is Blynk? https://blynk.io
  - Why plaato.blink.cc ?
  - Port 80 ?
  - [Any libraries we can test out](https://github.com/blynkkk/lib-python)? (we have an auth code, what is it waiting on).
]

---

# Lets Pretend to be a blynk Device

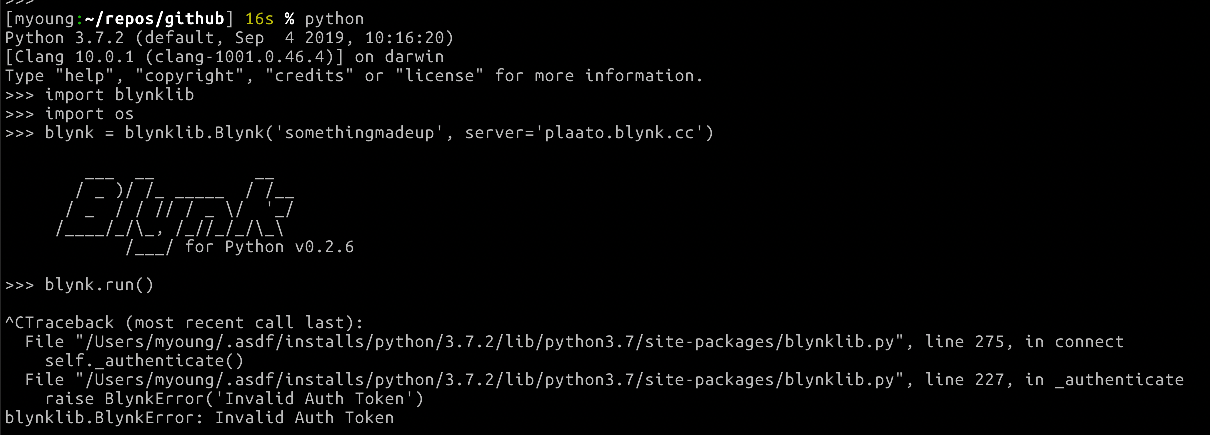

![](images/blynk1.png)

---

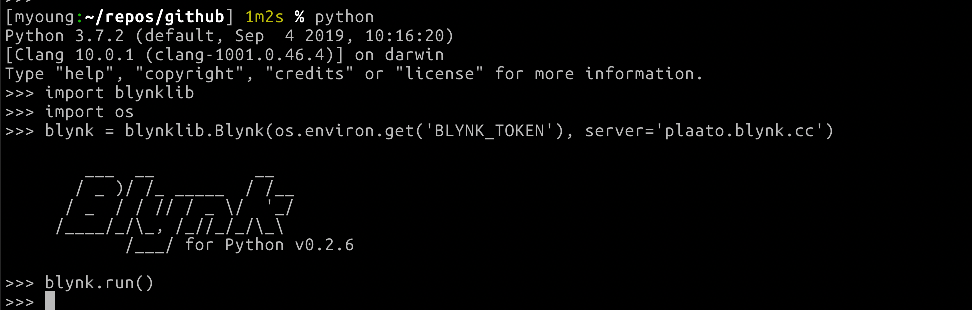

# Lets Pretend to be a blynk Device

![](images/blynk2.png)

---

layout: false
.left-column[
  ## What do we know
  ### Who it wants to talk to and how
]

.right-column[
Based on the pcap we know it wants to talk to plaato.blynk.cc on port 80 with no SSL.
It's sending some sort of auth token and waiting.
]

---

layout: false
.left-column[
  ## What do we know
  ### Who it wants to talk to and how
  ### Hardware protocol
]

.right-column[
Blynk transfers binary messages between the server and the hardware with the following structure:

---

layout: false
.left-column[
  ## What do we know
  ### Who it wants to talk to and how
  ### Hardware protocol
  ### Auth Successful Packet
]

```remark
    def test_authenticate(self, cb, mocker):
        mocker.patch.object(cb, 'send', return_value=None)
        mocker.patch.object(cb, 'receive', return_value=b'\x00\x00\x02\x00\xc8')
        cb._authenticate()
        assert cb._state == cb.AUTHENTICATED
```

.footnote[.red[*] https://github.com/blynkkk/lib-python/blob/master/test/test_blynk_connection.py#L120]
]

---

def parse_response(rsp_data, msg_buffer):
    msg_args = []
    msg_head_length = 5
    msg_type, msg_id, h_data = struct.unpack('!BHH', rsp_data[:msg_head_length])
    if msg_type in [2, 20, 15, 17, 41]:
        msg_body = rsp_data[msg_head_length: msg_head_length + h_data]
        msg_args = [itm.decode('utf-8') for itm in msg_body.split(b'\0')]
    else:
        pass
    return msg_type, msg_id, h_data, msg_args

socket = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
socket.bind(('0.0.0.0', 80))
socket.listen(1)
conn, addr = socket.accept()
with conn:
    while True:
        try:
            rsp_data =  conn.recv(1024)
            data = parse_response(rsp_data, 1024)
            if data:
                pprint(data)
                if data[0] in [2, 29]: # auth?
                    conn.sendall(b'\x00\x00\x01\x00\xc8') # -> .hex() => '00000100c8'
        except KeyboardInterrupt:
            socket.close()
            sys.exit()
        except Exception as e:
            socket.close()
            raise e
```

]

---

---

## Whats next

---

]

---

]

---

layout: false
.left-column[
  ##  Post Mortem
  ### Was that hacking?
  ### Prevention
]

]

---

layout: false
.left-column[
  ##  Post Mortem
  ### Was that hacking?
  ### Prevention
  ### Responsible Disclosure
]

]

---

# Questions

---
